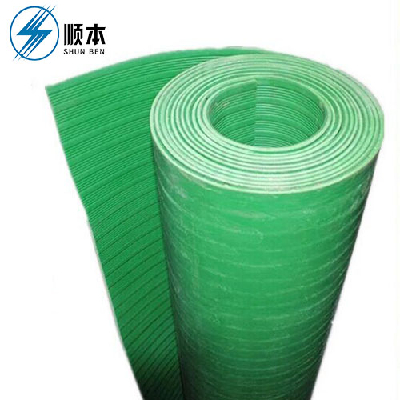

Antiskid insulation plate

Product number: SH

Product Name: non slip rubber insulation

Specifications: can be customized

Product categories: insulation plate series

Product description

Shijiazhuang shun the power equipment Co., Ltd. specializing in the production of various insulation pad.

According to the voltage level can be divided into: 10kV, 5kV, 20kV, 25kV, 35kV

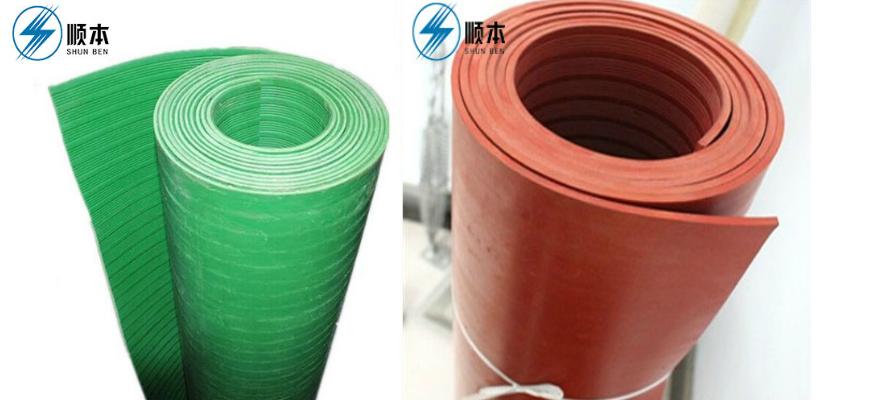

According to the color can be divided into: black rubber pad, red rubber pad, green plastic pad

According to the thickness can be divided into: 4mm,, 5mm, 6mm, 8mm, 10mm, 12mm, 3mm

Insulating rubber pad structure:

Insulating rubber gasket should be made of plastic insulating material.

Insulation adhesive pad process and molding:

There should be no harmful irregularities in the upper and lower surfaces of the insulating adhesive pad. Harmful irregularity refers to one of the following characteristics, defects damage uniformity, surface damage and smooth contour, such as holes, cracks, bureau of uplift, incision, inclusion of foreign body, conductive crease, voids, and casting marks such as corrugated bump. Harmless irregularities are the surface irregularities that are formed in the production process.

Insulation thickness:

Random selection of 5 or more different points for thickness measurement and inspection on the whole insulating rubber pad. Measuring instrument can be used in 1000 heart or the same precision. Micrometer precision should be less than 0.02mm, drilling diameter 6mm, flat presser foot diameter (3.17 0.25) mm, should be able to exert pressure foot (0.83 0.03) N pressure. Insulation pad should be placed flat, so that between the micrometer is smooth.
